Description

FEATURES & BENEFITS:

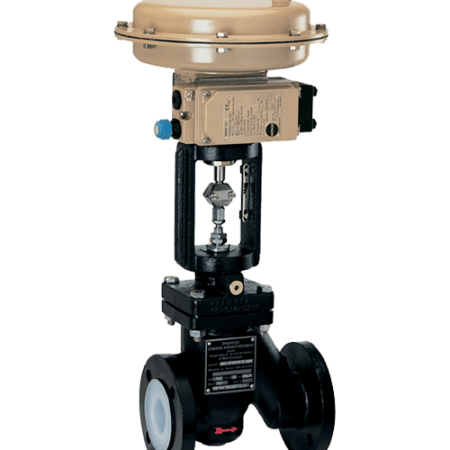

• Pfeiffer 1b PFA lined globe valve offers superior solution for addressing aggressive or corrosive media especially in the chemical industry.
• Low cost alternative to exotic material required to handle aggressive or corrosive m edia
• Exchangeable PTFE seat and PTFE plug
• Stem sealed by PTFE bellow with an additional safety packing as secondary seal
• Test connection for monitoring of the bellow primary seal and detecting leakage
• Low permissibility with a standard PFA liner thickness of 3+ mm

SPECIFICATIONS:

• Size:1″ to 4″
• ANSI Class:150
• Std. Materials:PFA Lined Cast Iron
• Temperature Range:14 to 392℉ (-10 to 200℃)
